Image pre-distortion simulation
T-SIM is able to pre-distort images for printing them on the flat sheet, so that once thermoformed, the images appear true. T-SIM can also predict deformation of an image printed on flat sheet. Below there are examples of image pre-distortion simulation in T-SIM.
- Image distortion / pre-distortion using bitmaps
- Image distortion / pre-distortion using 3D VRML model import
- Image distortion / pre-distortion using 3D IGES polylines
Distortion / pre-distortion using multiple images (bitmaps)
The latest version of T-SIM is capable to distort / pre-distort multiple images stored as bitmaps. The T-SIM Image mode provides an easy way to project / flip / remove bitmaps.
|
Pre-distorted image
|
Final image
|
 |
 |
The example video of multiple image pre-distortion is here for better understanding.
Image distortion / pre-distortion using 3D VRML model import
The new T-SIM feature enables image distortion / pre-distortion using a 3D image represented by VRML model. T-SIM comes with example called Mask. Model is projected onto deformed sheet. Then T-SIM is capable to automatically predict the pre-distorted image.
 |
 |
 |
|
VRML model
|
After import into T-SIM
|
Pre-distorted image
|
The illustrative example video of VRML image pre-distortion is here in two animations.
Image distortion / pre-distortion using IGES polylines
This T-SIM feature enables image distortion / pre-distortion with a precise location of an image represented by its outlines. The image outlines must be represented by lines or polylines and saved as an IGES file. T-SIM reads the IGES file and project the lines and polylines onto deformed or flat sheet. The projected lines/polylines can be distorted/pre-distorted just by selecting the last/first simulation record. Then IGES export generates an IGES file with the distorted/pre-distorted image outlines.
Phone example

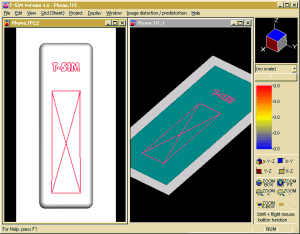

After T-SIM installation there is an example called Phone in the T-SIM directory. Open this example - click Post Processing and open file Phone.tfc located in the folder \Phone. Once the project is loaded, click on View / Image mode. In Image mode, select IGES / Project IGES. Select the IGES file ImageOrig. Igs delivered with T-SIM and click Open. The image outlines (polylines) are automatically projected:

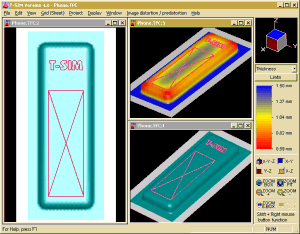

Now for example to select the record 1 to see the pre-distorted image:
The following picture shows a comparison of the original form and the pre-distorted
image outlines. The original form is red and pre-distorted outlines has blue color:

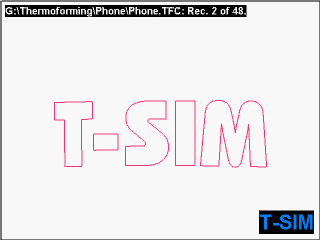

The following animations show deformation of the pre-distorted image:
